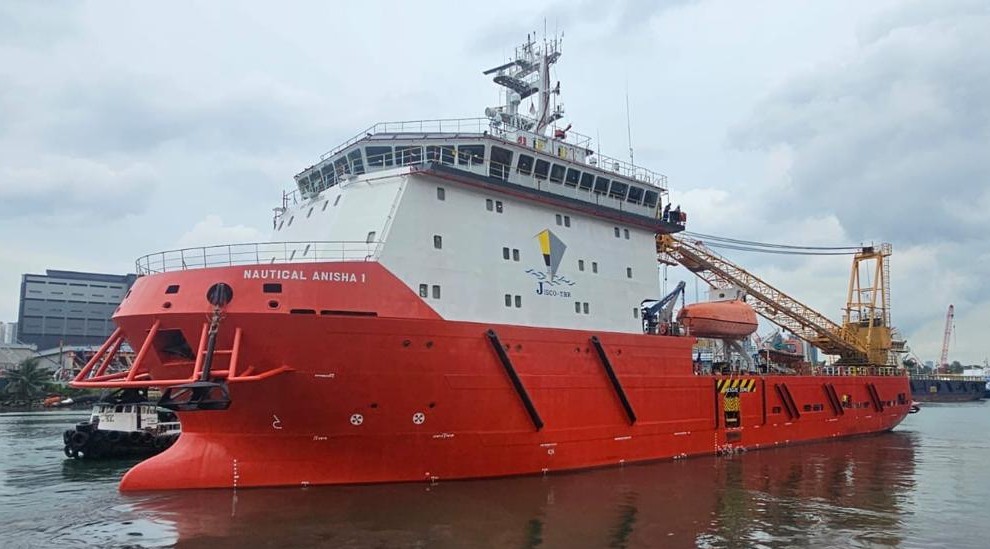

MWV FALGOUT

DP2 80M Maintenance / working vessel

dimensions

Length overall

80m

Breadth moulded

20m

depth mould

8m

design draft

6m

gross tonnage

5217Ton

net tonnage

1565Ton

Accommodations

accommodate

200men (1men room x 10/2 men room x 13 & 4 men room x 41)

lifeboat

2 x 100 men totally enclosed lifeboat

rescue boat

2 x rescue boat

imdg code

complied

strength of main deck

10 T/M²

clear deck space

820m²

davit crane

SCM China SWL 3Ton @ 12m

deck crane

SCM China SWL 70MT Model YQHG 3150 - 70T - 13M

BUILD

YEAR

2020

BUILDER

china

CLASS

ABS

FLAG

Brunei Darussalam

PORT OF REGISTRY

Muara

OFFICIAL NO

0128

IMO NO

9779305

CALL SIGN

V8V3254

MMSI

508111300

PERFORMANCE

SERVICE SPEED

12 knots

CLASS

ABS

A1 Offshore Support Vessel, AMS, ACCU, DPS-2, FFV1, SPS, BWT, CRC, UWILD

CAPACITIES

FUEL OIL

1083 M³

FRESH WATER

1221 M³

Ballast / drill water

2000 M³

DIRTY OIL

15 M³

Bilge tank

30 M³

FOAM

10 M³

WINDLASS & MOORING

WINDLASS

2 X 10 tons

mooring winch

4 point mooring system

ANCHOR & wire

5ton & 38mm X 1500m

CAPSTAN

2 X 10 tons

TUGGER WINCH

2 X 10 tons

MACHINERY

dynamic position sys (dp2)

KONGSBERG K POS DP-21 C/W IDP Position Reference System

MAIN ENGINES

2 X 1471 KW NIIGATA 6L26HLX, 750 rpm

DIESEL GENERATOR

2 X CAT C32 940KW + 2 X CAT C18 550KW

SHAFT GENERATOR / PTI

2 X 900 KW/Input Power 900KW via PTI on HYBRID Configuration

BOW THRUSTER

2 X KAWASAKI KT-88B3 Tunnel Thruster, 800KW Electrical Motors

EMERGENCY GENSET

1 X 150 KW CATERPILLAR C9

PROPELLERS

2 X Z-Drive, 360 Degrees, Azimuth Propellers

EXTERNAL FIRE PUMP

2 X FFS 1200 M³/hr

ANTIROLL

2 X Flume Antiroll Stabilization Tank

OILY WATER SEPARATOR

1 X RWO Marine Water Technology

SEWAGE TREATMENT PLANT

1 X Detegasa Biological Sewage Treatment System

FUEL OIL TRANSFER PUMP

1 X 120M³/hr X 60m

FRESH WATER PUMP

1 X 120M³/hr X 60m

BILGE / BALLAST PUMP

2 X 120M³/hr X 90m

WATER MAKER

2 X 40Mton (Reverse Osmosis)

CHARtS

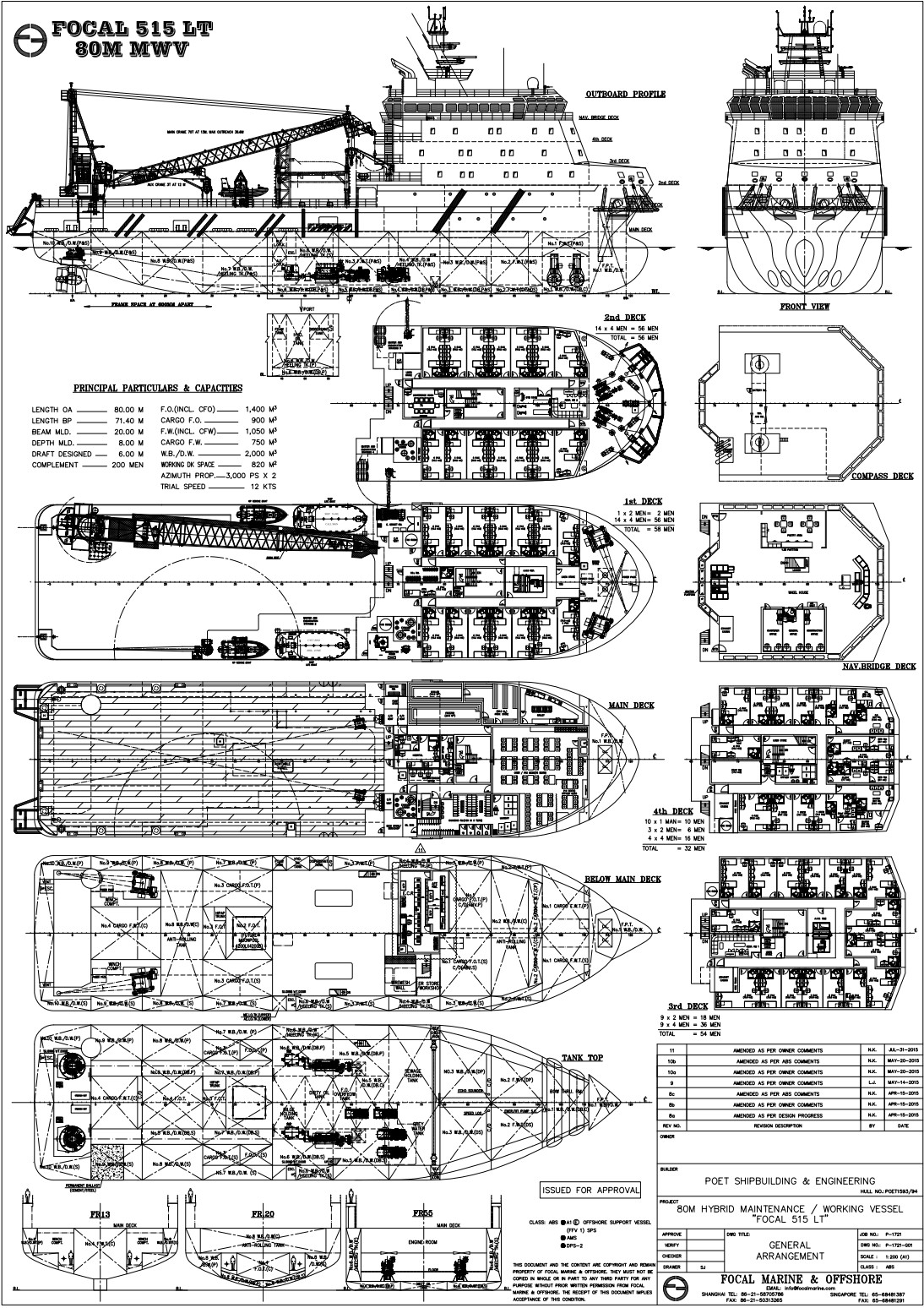

MWV FALGOUT GA DRAWING

MWV FALGOUT PEDESTAL CRANE DETAILS AND LOAD CHARTS

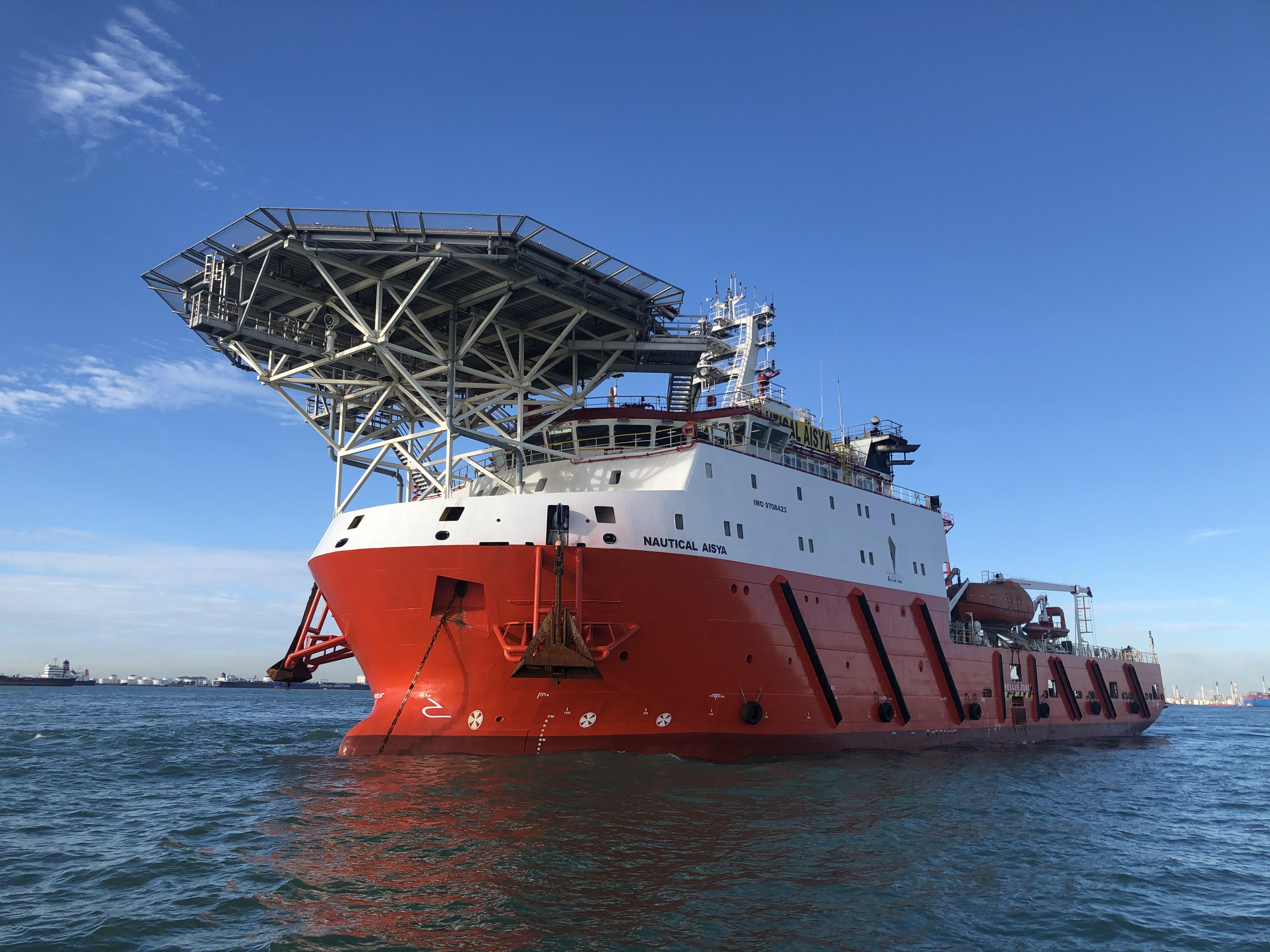

Nautical Aisya

DP2 85M Maintenance / working vessel

dimensions

Length overall

85m

BREADTH MOULDED

23m

DEPTH MOULD

8m

DESIGN DRAFT

6.2m

GROSS TONNAGE

6368 Ton

Accommodations

accommodate

239 men

LIFEBOAT

2 X 150 men totally enclosed Lifeboat

RESCUE BOAT

2 X Rescue Boa

IMDG CODE

Complied

STRENGTH OF MAIN DECK

10 T/M²

CLEAR DECK SPACE

900 m²

DAVIT CRANE

Zhenjing DH Marine 3T SWL

DECK CRANE

Favelle Favco 80MT Model 15/10K

HELIDEK

22.2 M Meet CAP.437 S61/S92 MOM 12.8 Tons

BUILD

YEAR

2015

BUILDER

China

CLASS

ABS

FLAG

Brunei Darussalam

PORT OF REGISTRY

Muara

OFFICIAL NO

0111

IMO NO

9708423

CALL SIGN

V8V3204

MMSI

508111258

PERFORMANCE

SERVICE SPEED

12 knots

CLASS

ABS

A1 Offshore Support Vessel, AMS, ACCU, DPS-2, FFV2, SPS,BWT, CRC, MLC-Accom, UWILD, HELIDK

CAPACITIES

FUEL OIL

1700 M³

FRESH WATER

1050 M³

BALLAST WATER

2500M³

DIRTY OIL

15M³

DRILL WATER

2150M³

WINDLASS & MOORING

WINDLASS

2 X 15 tons

MOORING WINCH

4-point mooring system 40 T

ANCHOR & WIRE

7 ton & 42mm X 1500m

CAPSTAN

2 X 10 tons

TUGGER WINCH

2 X 10 tons

MACHINERY

MAIN ENGINES

2 X 2206 KW NIIGATA 6L28AHX, 750 rpm

DIESEL GENERATOR

4 X 748 KW CATERPILLAR C32 + ABB, AMG 0400EE04

SHAFT GENERATOR

2 X 1000 KW LEROY SOMER

BOW THRUSTER

3 X STT3CP Tunnel Thruster, 780KW Electrical Motors

EMERGENCY GENSET

1 X 215 KW CATERPILLAR C9

PROPELLERS

2 X Z-Drive, 360 Degrees, Azimuth Propellers

ANTIROLL

2 X Flume Antiroll Stabilization Tank

OILY WATER SEPARATOR

1 unit

SEWAGE TREATMENT PLANT

1 unit

FUEL OIL TRANSFER PUMP

1 X 120M³/hr X 60m

FRESH WATER PUMP

1 X 120M³/hr X 60m

BILGE / BALLAST PUMP

2 X 150M³/hr X 100m

WATER MAKER

2 X 60Mton (Reverse Osmosis)

DYNAMIC POSITIONING SYSTEM

1 X MT DP2 SYSTEM (CLASS II)

CHARtS

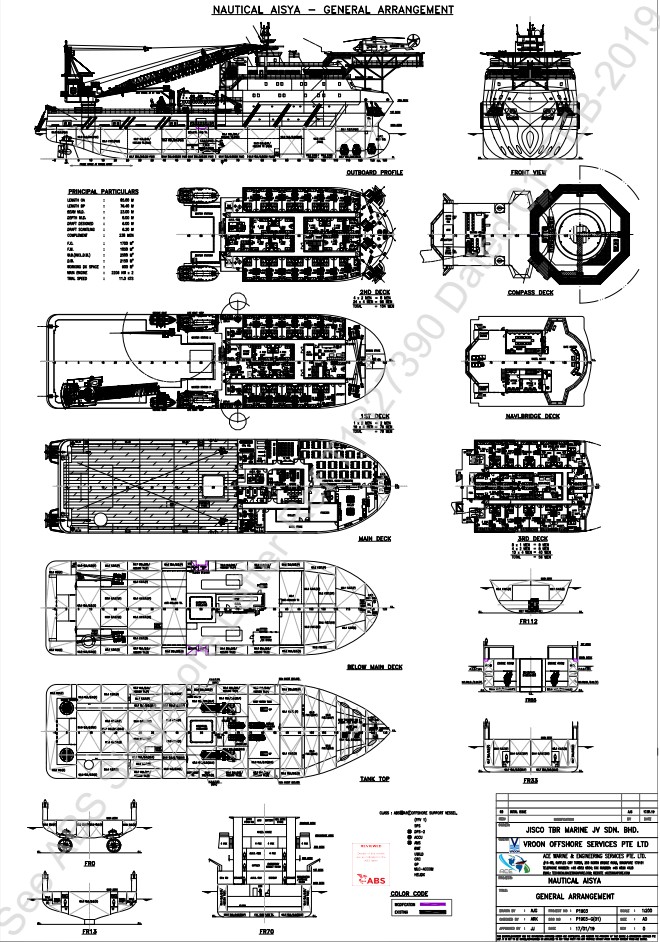

Nautical Aisya GA DRAWING

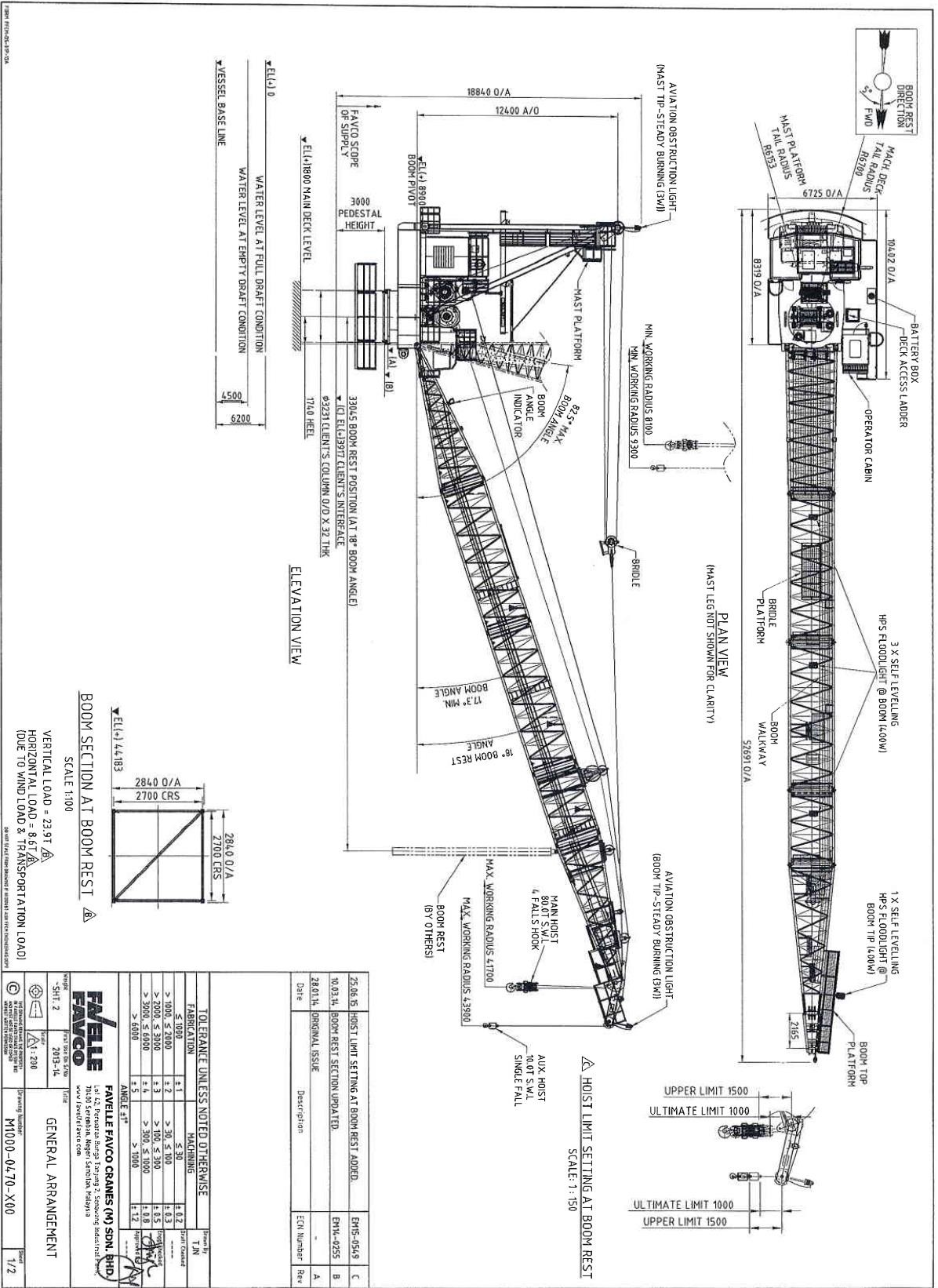

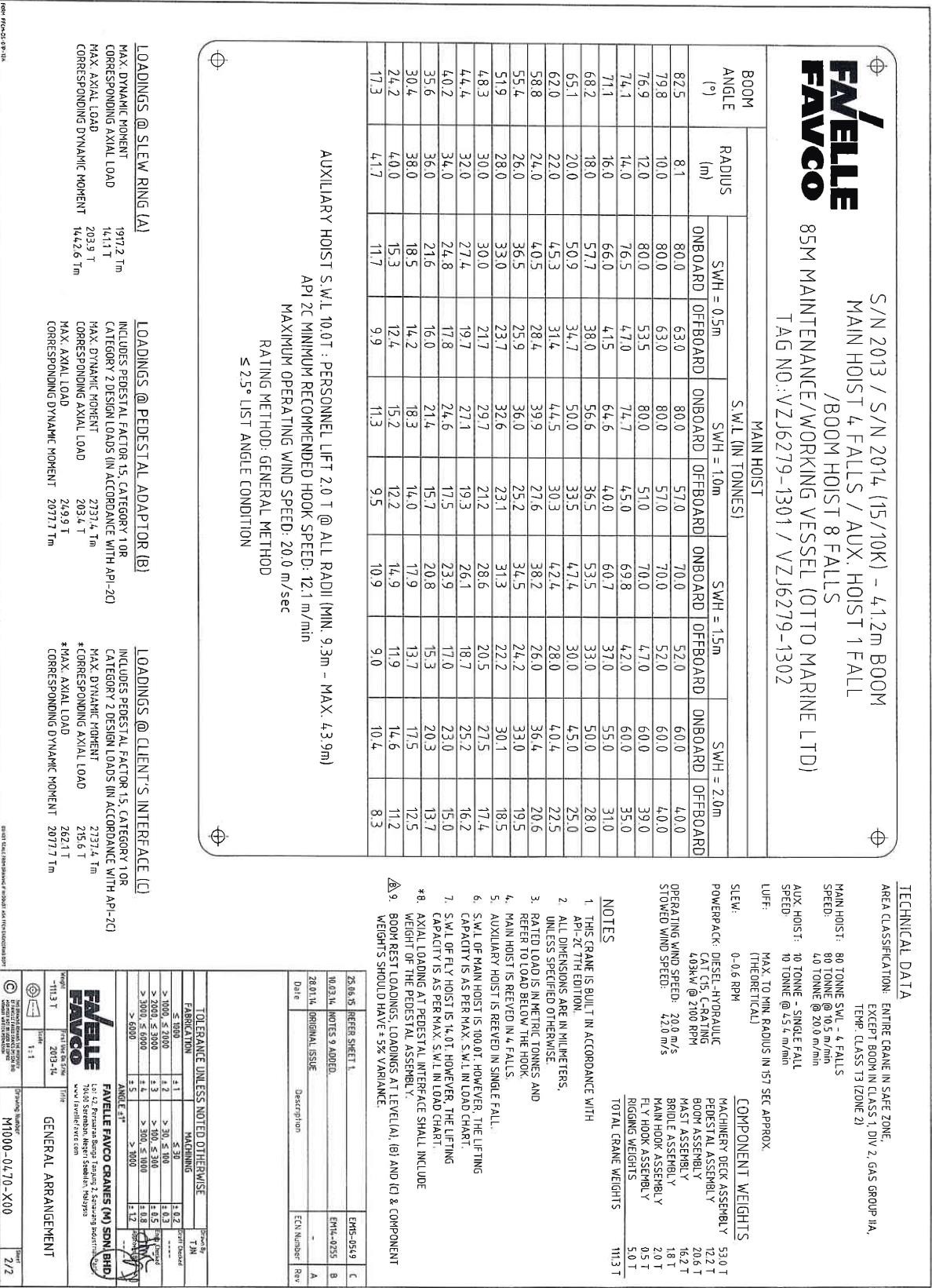

Nautical Aisya PEDESTAL CRANE DETAILS AND LOAD CHARTS

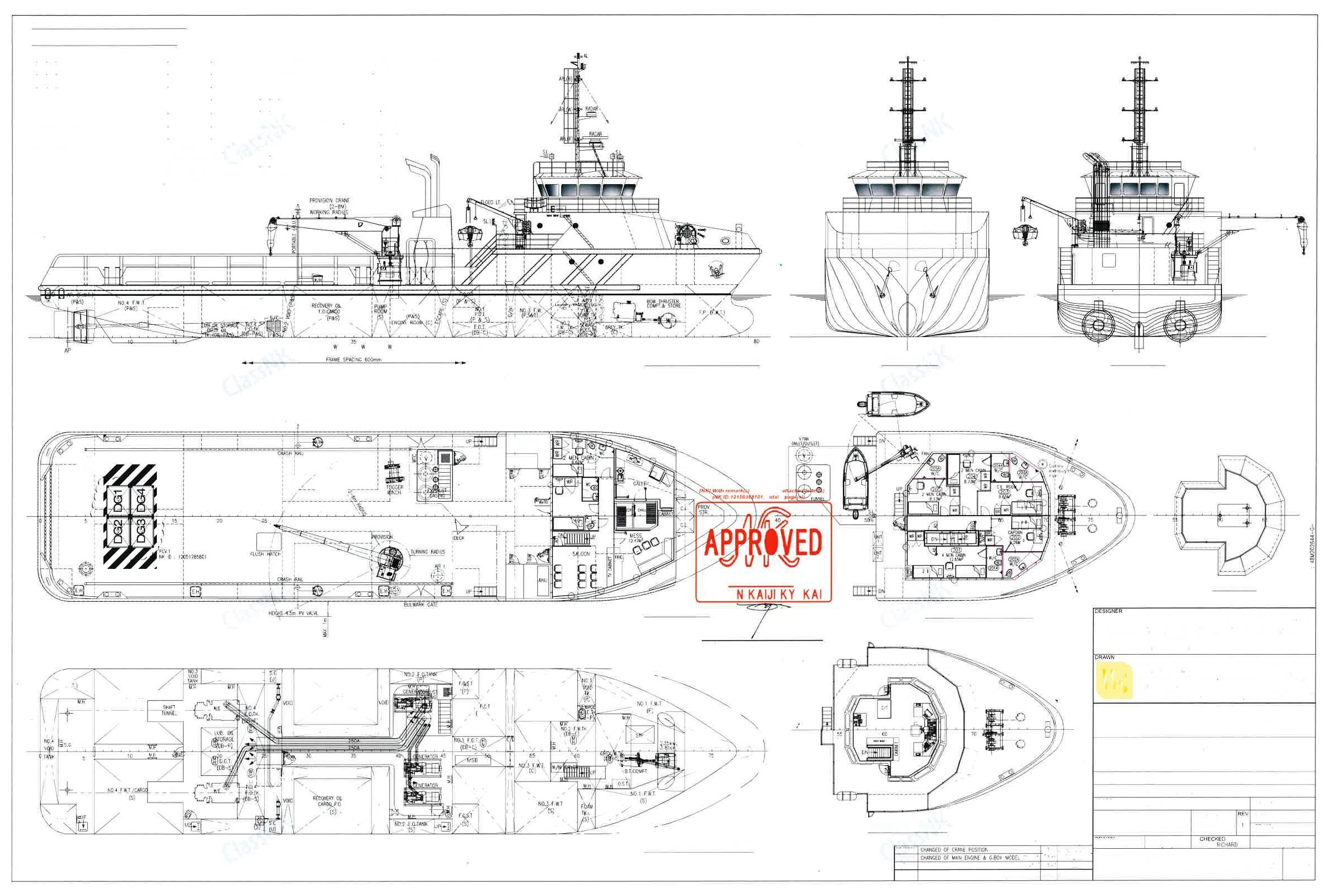

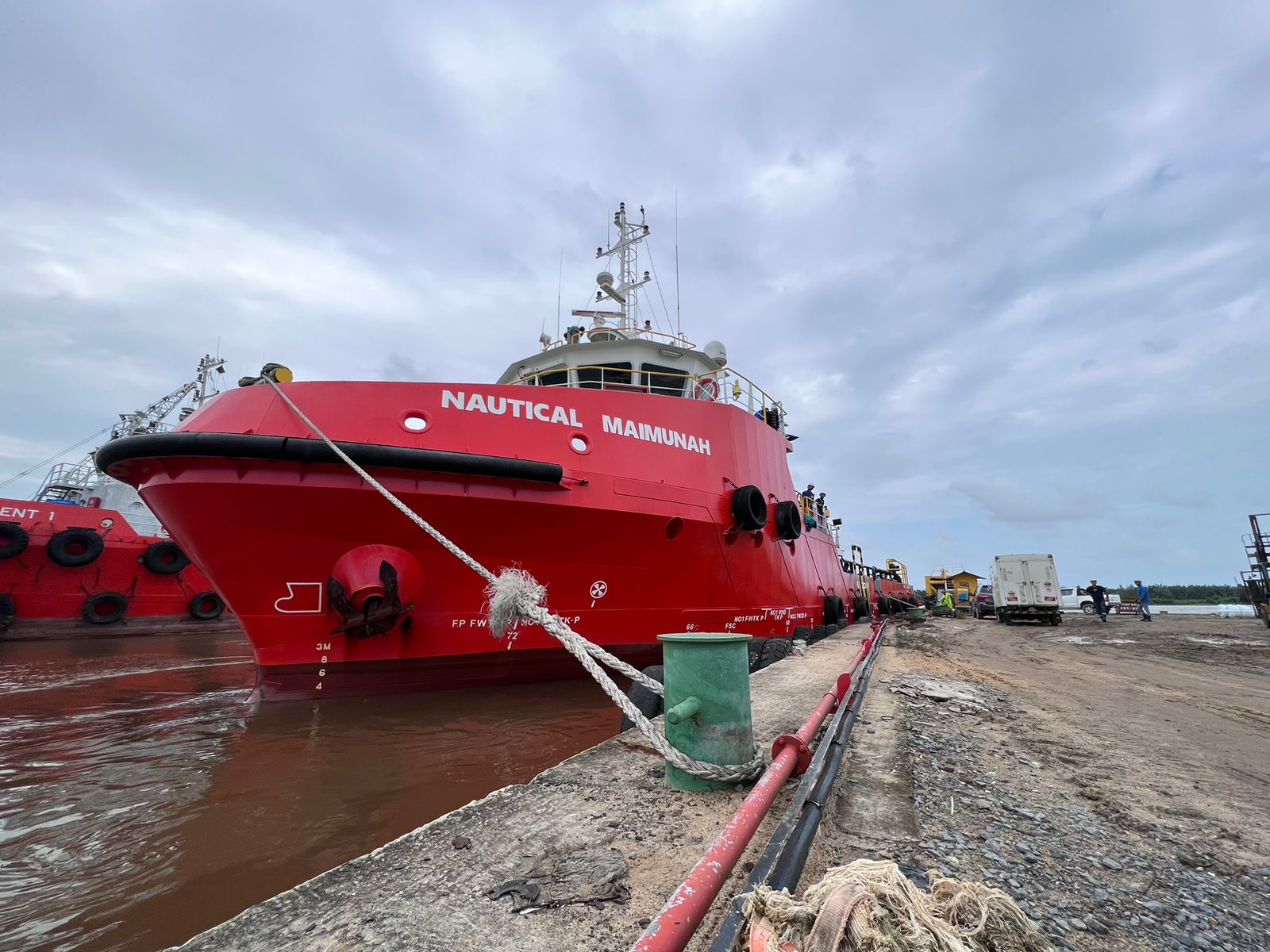

nautical maimunah

48M MPV Multi Purpose Vessel

dimensions

Length overall

48m

BREADTH MOULDED

11m

DEPTH MOULD

3.5m

DESIGN DRAFT

2.8m

GROSS TONNAGE

499Ton

NET TONNAGE

150Ton

Accommodations

accommodate

12 men

RESCUE BOAT

1 unit 6 men

IMDG CODE

Complied

STRENGTH OF MAIN DECK

5 T/M²

CLEAR DECK SPACE

260 m²

DECK CRANE

SWL 5Ton @ 8m

BUILD

YEAR

2021

BUILDER

Malaysia

CLASS

NKK

FLAG

Brunei Darussalam

PORT OF REGISTRY

Muara

OFFICIAL NO

0131

IMO NO

9930650

CALL SIGN

V8V3262

MMSI

508111309

PERFORMANCE

SERVICE SPEED

10 knots

CLASS

NKK Multi-Purpose Vessel

CAPACITIES

FUEL OIL

280 M³

FRESH WATER

330 M³

RECOVERY OIL TANK

110M³

GREY WATER

10M³

DIRTY OIL

3M³

LUB OIL TANK

3M³

FOAM

8M³

WINDLASS & MOORING

WINDLASS

1 X 5 tons

ANCHOR

2 X 900kg

CAPSTAN

2 X 5 tons

TUGGER WINCH

1 X 3 tons

MACHINERY

MAIN ENGINES

2 X 895KW @ 1800RPM CUMMINS KTA38M2

DIESEL GENERATOR

3 X 80KW @ 1500RPM CUMMINS 6BT5.9DM

REDUCTION GEAR

2 X REINJTES WAF562L

BOW THRUSTER

1 X NAKASHIMA PROPELLER NT-F010 THRUST 3.9 TON

EMERGENCY GENSET

1 X 60KW YANMAR 4TNV106-GGE

PROPELLERS

2 X FPP MENTRADE MARINE PITCH 1759MM

KORL NOZZLE

2 UNITS

FUEL MONITORING SYSTEM

AQUA METRO EFMS

FIT GAS DETECTOR SYSTEM

CROWCON

OILY WATER SEPARATOR

1 X GRS-05EB

SEWAGE TREATMENT PLANT

1 X ISB-02 Biological Sewage Treatment System

FUEL OIL TRANSFER PUMP

1 X 120M³/hr X 80m

FRESH WATER PUMP

1 X 120M³/hr X 80m

BILGE / BALLAST PUMP

1 X 50M³/hr X 50m

RECOVERY OIL PUMP

1 X 20M3/hr

CHARtS
